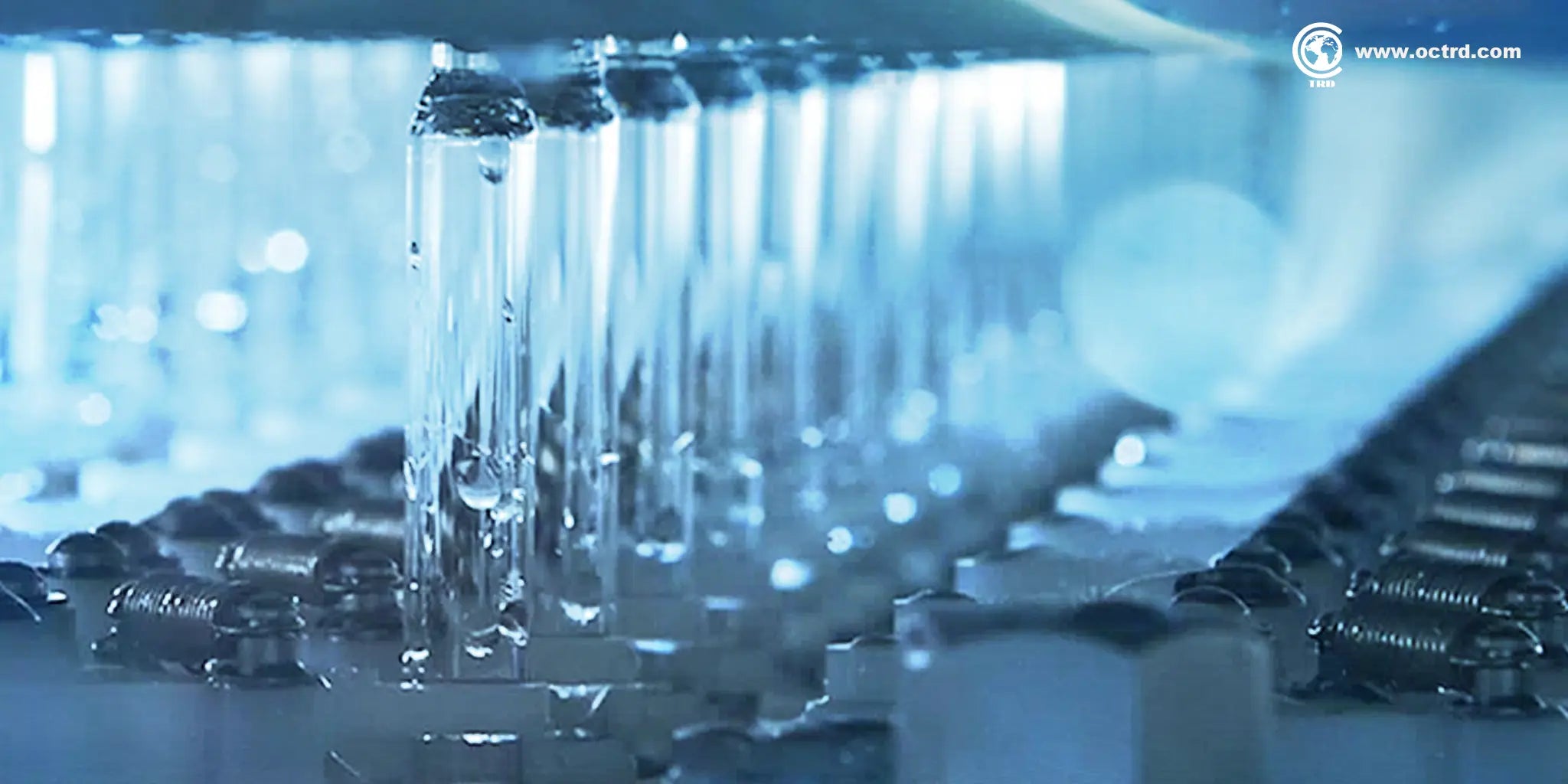

Glass Cartridge Manufacturing Process: From Glass Tube to Pharmaceutical Packaging
Glass Cartridge Manufacturing Process: From Glass Tube to Pharmaceutical Packaging
Pharmaceutical glass cartridges play a critical role in modern injectable drug delivery systems, including insulin pens, reusable injection pens, and auto-injectors.
Unlike standard glass containers, pharmaceutical cartridges require extremely high precision because they must work together with mechanical drug delivery devices.
A qualified glass cartridge manufacturer must control every stage of production, from pharmaceutical-grade glass selection to final inspection and packaging.
OCTRD manufactures high-quality pharmaceutical glass cartridges using advanced forming technology, strict quality control, and pharmaceutical packaging expertise.
This article explains the complete glass cartridge manufacturing process from glass tubing to finished pharmaceutical packaging.
What Is a Pharmaceutical Glass Cartridge?
A pharmaceutical glass cartridge is a precision-engineered glass container designed for injectable drugs and compatible with drug delivery systems.
Common applications include:
- Insulin pens
- GLP-1 injection systems
- Reusable pen injectors
- Auto-injectors
- Biologic drug delivery systems
A typical cartridge consists of:
- Type I borosilicate glass body
- Rubber piston
- Aluminum seal
- Injection device
Because cartridges directly contact injectable medicines, the manufacturing process requires strict control over:
- Material quality
- Cleanliness
- Dimensions
- Surface performance
- Defect control
Step 1: Selection of Pharmaceutical Glass Tubing
The manufacturing process starts with high-quality pharmaceutical glass tubing.
For injectable drug applications, manufacturers typically select:
Type I Neutral Borosilicate Glass
because it provides:
- Excellent chemical durability
- High hydrolytic resistance
- Low interaction with drug formulations
- Strong thermal stability
The glass tubing must meet strict requirements for:
- Chemical composition
- Wall thickness
- Diameter consistency
- Surface quality
Any variation in the raw material may affect the final cartridge performance.
Step 2: Precision Glass Forming
After glass tubing selection, the material enters the forming process.
The glass tube is heated to a controlled temperature until it becomes soft and moldable.
Specialized forming equipment shapes the glass into cartridge geometry.
Key parameters controlled during forming include:
Outer Diameter
The external diameter must match injection device requirements.
Incorrect dimensions may cause:
- Poor device fitting
- Assembly problems
- Injection failure
Inner Diameter
The internal diameter affects:
- Drug volume
- Piston movement
- Dose accuracy
Length and Geometry
The cartridge length and shape must comply with device specifications.
Precision forming ensures compatibility with:
- Injection pens
- Auto-injectors
- Filling equipment
Step 3: Annealing and Stress Relief
After forming, glass cartridges undergo controlled cooling.
This process is called annealing.
The purpose is to:
- Remove internal stress
- Improve mechanical strength
- Reduce breakage risk
Proper annealing improves cartridge reliability during:
- Transportation
- Filling operations
- Device assembly
Step 4: Cleaning and Surface Treatment
Pharmaceutical cartridges require extremely high cleanliness standards.
After forming, cartridges undergo cleaning processes to remove:
- Glass particles
- Dust
- Manufacturing residues
Typical cleaning steps include:
- Washing
- Rinsing
- Drying
- Surface preparation
For injection applications, some cartridges may receive siliconization treatment.
Step 5: Siliconization Process
Siliconization is an important step for pharmaceutical cartridges.
The purpose is to improve the interaction between the glass surface and the rubber piston.
Benefits include:
Smooth Piston Movement
Reduces friction during injection.
Consistent Injection Force
Helps ensure stable drug delivery.
Better Device Performance
Improves compatibility with:
- Pen injectors
- Auto-injectors
A controlled siliconization process is essential because excessive or insufficient silicone may affect drug performance.
Step 6: Automated Inspection and Quality Control
Pharmaceutical cartridge production requires comprehensive inspection.
Modern manufacturers use automated inspection systems to detect defects.
Visual Inspection
Checks for:
- Cracks
- Chips
- Bubbles
- Surface defects
- Foreign particles
Dimensional Inspection
Measures:
- Diameter
- Length
- Wall thickness
- Volume accuracy
Surface Quality Inspection
Evaluates:
- Internal surface condition
- Cleanliness
- Coating uniformity
Mechanical Performance Testing
Ensures:
- Strength
- Break resistance
- Reliable handling
Step 7: Pharmaceutical Packaging
After inspection, qualified cartridges are packaged according to customer requirements.
Packaging options may include:
Bulk Packaging
Suitable for:
- Large-scale filling operations
- Automated production lines
Nest & Tub Packaging
Commonly used for:
- High-value injectable drugs
- Ready-to-use filling systems
Advantages:
- Reduced handling
- Improved cleanliness
- Better automation compatibility
Step 8: Final Quality Release
Before shipment, pharmaceutical glass cartridges undergo final quality review.
Documentation may include:
- Product specifications
- Inspection reports
- Material certificates
- Quality records
This ensures customers receive consistent and traceable pharmaceutical packaging components.
Key Quality Requirements in Glass Cartridge Manufacturing
Producing pharmaceutical cartridges requires more than glass forming.
Manufacturers must control multiple technical factors.
1. Dimensional Precision
Injection devices require extremely accurate cartridge dimensions.
Important parameters:
- Diameter tolerance
- Length tolerance
- Volume accuracy
Precision directly affects:
- Dose delivery
- Device compatibility
- Patient safety
2. Glass Defect Control
Even small defects may affect cartridge performance.
Manufacturers must control:
- Surface damage
- Cracks
- Bubbles
- Foreign particles
3. Chemical Resistance
The glass must maintain stability when in contact with injectable drugs.
Type I borosilicate glass provides excellent resistance against chemical interaction.
4. Container Closure Compatibility
The cartridge must work effectively with:
- Rubber piston
- Aluminum seal
- Drug delivery device
A complete packaging system requires compatibility between all components.
Glass Cartridge Manufacturing Challenges
Producing pharmaceutical cartridges requires advanced technology because manufacturers must balance:
High Precision
Cartridges must meet strict dimensional requirements.
High Cleanliness
Injectable packaging requires pharmaceutical-level cleanliness.
High Production Consistency
Large pharmaceutical projects require millions of consistent units.
Device Compatibility
Cartridges must integrate perfectly with injection systems.
Why Choose OCTRD as Your Glass Cartridge Manufacturer?
OCTRD specializes in pharmaceutical glass packaging solutions for global customers.
Our capabilities include:
Pharmaceutical Glass Expertise
Experience in:
- Glass tubing
- Injection vials
- Ampoules
- Pharmaceutical cartridges
Advanced Manufacturing Capability
Supporting:
- Large-scale production
- Stable quality
- Customized requirements
Strict Quality Control
Our production focuses on:
- Dimensional accuracy
- Visual inspection
- Surface quality
- Packaging reliability
Complete Technical Support
We support customers with:
- Product selection
- Sample evaluation
- Specification confirmation
- Commercial production
Frequently Asked Questions
What material is used to manufacture pharmaceutical cartridges?
Most pharmaceutical cartridges are manufactured from Type I neutral borosilicate glass due to its excellent chemical stability.
How are glass cartridges formed?
Glass cartridges are produced by heating pharmaceutical glass tubing and forming it into precise cartridge shapes using specialized equipment.
Why is siliconization needed for cartridges?
Siliconization reduces friction between the glass cartridge and rubber piston, enabling smooth and consistent injection.
What inspections are performed on pharmaceutical cartridges?
Common inspections include:
- Visual inspection
- Dimensional testing
- Surface quality evaluation
- Mechanical testing
What packaging methods are available?
Common options include:
- Bulk packaging
- Nest and tub packaging
depending on filling requirements.
Conclusion
The glass cartridge manufacturing process requires advanced technology, precise control, and pharmaceutical packaging expertise.
From selecting Type I borosilicate glass tubing to precision forming, siliconization, inspection, and final packaging, every step affects the safety and performance of injectable drug delivery systems.
For pharmaceutical companies developing insulin pens, biologics, and advanced injection devices, choosing an experienced glass cartridge manufacturer is essential.
OCTRD provides reliable pharmaceutical glass cartridge solutions designed for modern drug delivery applications.
Contact OCTRD for technical specifications, samples, and manufacturing support.
