🧠 Introduction

Glass tubing is the foundation of pharmaceutical glass packaging, used to produce ampoules, vials, and other high-precision containers for injectable drugs.

Because these containers come into direct contact with sensitive pharmaceutical formulations, the manufacturing process of glass tubing must meet extremely strict requirements for:

• Chemical stability
• Dimensional precision
• Thermal performance
• Surface quality

In this guide, we explain the complete glass tubing manufacturing process step-by-step, providing insight into how high-quality pharmaceutical glass is produced.

🏭 Overview of Glass Tubing Manufacturing

The production of borosilicate glass tubing involves several highly controlled stages:

1. Raw material preparation
2. High-temperature melting
3. Tube forming (drawing process)
4. Diameter and wall thickness control
5. Annealing
6. Cutting and finishing
7. Inspection and quality control

Each stage plays a critical role in ensuring consistency and performance.

🧪 Step 1: Raw Material Preparation

The quality of glass tubing begins with raw material selection.

🔬 Main components:

• Silica (SiO₂)
• Boron oxide (B₂O₃)
• Sodium oxide (Na₂O)
• Aluminum oxide (Al₂O₃)

💡 Why composition matters:

• Boron content improves chemical resistance
• Low alkali content reduces ion leaching
• Balanced composition ensures thermal stability

👉 Pharmaceutical glass requires tightly controlled formulations.

🔥 Step 2: High-Temperature Melting

Raw materials are melted in a furnace at temperatures exceeding 1500°C.

Key objectives:

✔ Achieve complete homogenization
✔ Eliminate bubbles and impurities
✔ Ensure uniform chemical composition

⚠️ Critical challenges:

• Temperature stability
• Energy consumption
• Impurity control

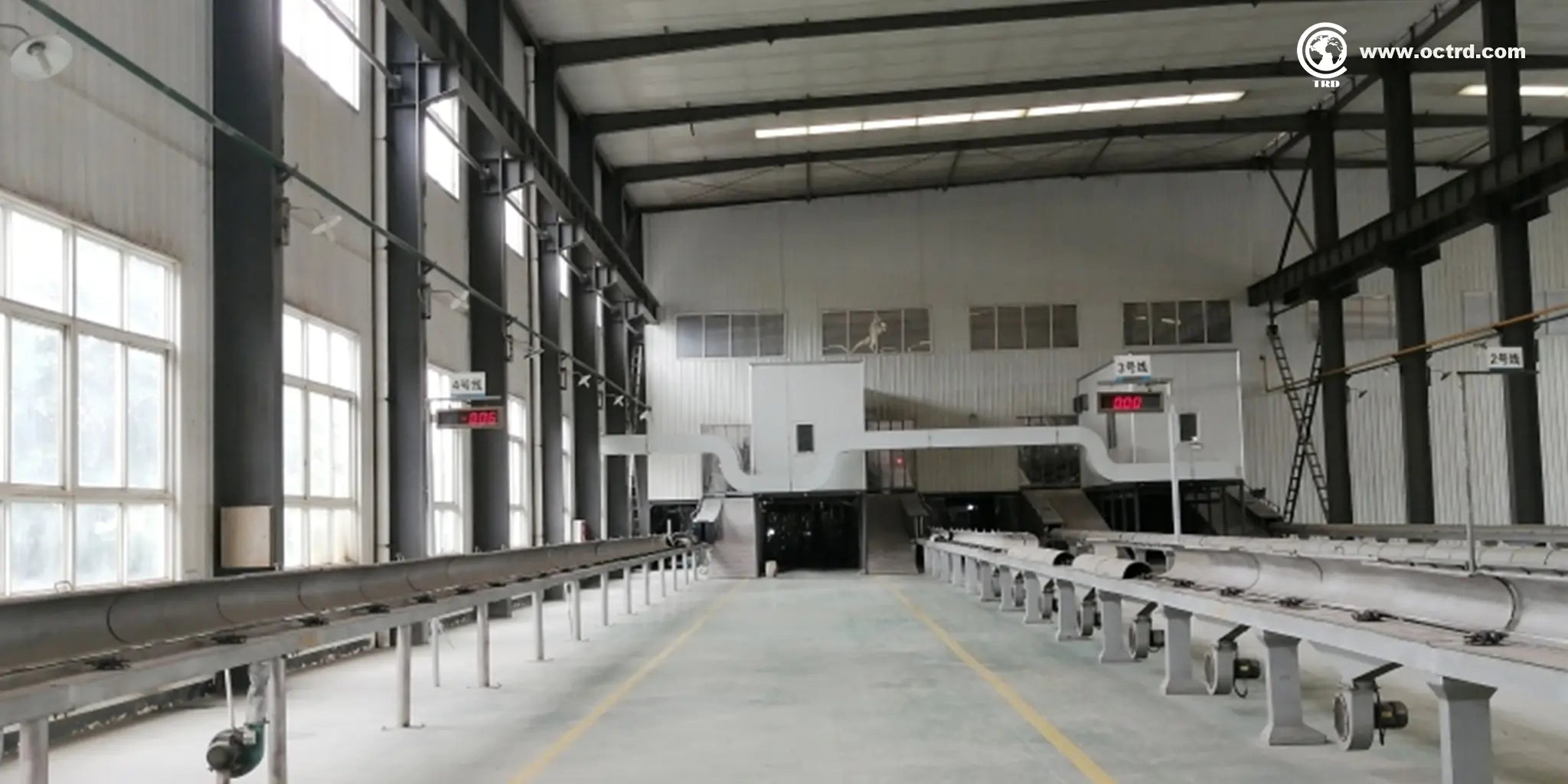

🧵 Step 3: Tube Forming (Drawing Process)

Molten glass is drawn into continuous tubes using specialized forming equipment.

🧪 Two common forming methods:

1. Danner Process

• Glass flows over a rotating mandrel
• Air pressure forms inner diameter
• Produces high-precision pharmaceutical glass tubing

2. Vello Process

• Vertical drawing method
• Suitable for large-scale production

💡 Key advantages:

✔ Continuous production
✔ High dimensional consistency
✔ Smooth surface quality

📏 Step 4: Diameter & Wall Thickness Control

Precision control is essential for pharmaceutical applications.

Key parameters:

• Outer Diameter (OD)
• Inner Diameter (ID)
• Wall thickness

Control methods:

• Laser measurement systems
• Real-time monitoring
• Automated adjustment

👉 Even small deviations can cause issues in glass ampoule manufacturing

❄️ Step 5: Annealing Process

After forming, glass tubing is gradually cooled in an annealing furnace.

Why annealing is critical:

✔ Relieves internal stress
✔ Prevents cracking
✔ Improves mechanical strength
✔ Stabilizes structure

⚠️ Without proper annealing:

• Tubes may break during processing
• High defect rate in downstream production

✂️ Step 6: Cutting & Finishing

Glass tubing is cut into required lengths based on application.

Requirements:

• Clean edges
• Accurate length
• No micro-cracks

Additional finishing:

• Surface polishing (if needed)
• Sorting and classification

🔍 Step 7: Inspection & Quality Control

Pharmaceutical-grade tubing must pass strict quality checks.

Key inspection criteria:

✔ Dimensional accuracy (OD/ID)
✔ Wall thickness uniformity
✔ Straightness
✔ Surface defects (bubbles, scratches)
✔ Chemical resistance

Advanced systems:

• Optical inspection systems
• Automated defect detection
• Laboratory testing (hydrolytic resistance)

🧠 Why Manufacturing Precision Matters

For ampoule and vial manufacturers, tubing quality determines:

• Machine compatibility
• Production efficiency
• Product consistency
• Final packaging quality

👉 High-quality tubing reduces downtime and defects.

🧪 Pharmaceutical vs Industrial Glass Tubing

💉 Application in Pharmaceutical Packaging

Glass tubing is used to produce pharmaceutical glass ampoules and glass vials

• Cartridges and syringes

👉 It is the starting point of the entire pharmaceutical glass supply chain

📈 Industry Trends

• Increasing demand for high-purity borosilicate glass
• Automation requiring tighter tolerances
• Growing biologics market driving higher quality standards

👉 Tubing manufacturers are becoming more critical in the supply chain.

📩 Conclusion

The manufacturing of pharmaceutical glass tubing is a highly precise and controlled process that forms the backbone of modern drug packaging.

From raw material selection to forming, annealing, and inspection, every step must meet strict standards to ensure compatibility with injectable pharmaceutical applications.

As demand for high-quality pharmaceutical packaging continues to grow, advanced glass tubing manufacturing plays a critical role in ensuring product safety, efficiency, and global compliance.
